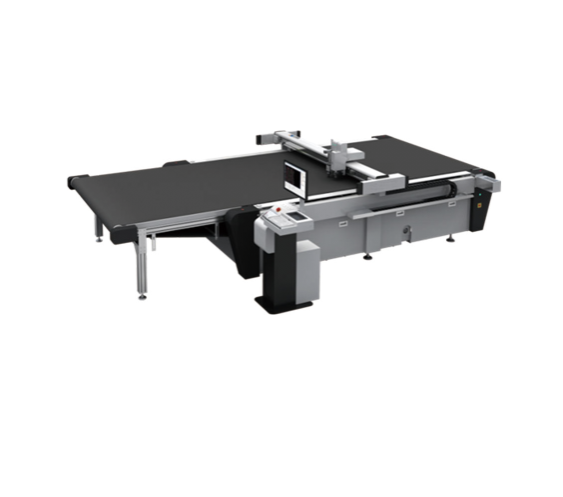

Boke single cutting machine
Recommended application scenarios
1）Sample cutting
Typical customers: Evely Fashion, Hang silk, etc
2）Haute Couture (suits, shirts, work suits, wedding dresses)
Typical customers: Xiamen Hepburn Clothing, Alibaba Smart Factory, Shanghai Golden Mango, etc.
3）Special fabrics, small batch cutting:
Sheep fleece, double-sided cloth, artificial fur, microfiber, etc
Parameters:
Specification: effective cutting area(mm2) 2500X1600 / 3500X1600
Ø Throwing blade：Standard φ28 round knife blade, special hardening edge of tungsten steel, easy to cut a variety of fabrics, long service life, the thickest can cut 5mm multi-layer fabric. Available with φ22, φ32 and φ36 blades; More diameter blades can be customized
Ø The touch screen can be digitally fine-tuned and preset storage tool depth and tool pressure, without manual adjustment by experience;
Ø The first aerospace honeycomb aluminum plate in the industry: strong, weatherproof, high flatness, not easy to deform under strong load, the internal honeycomb structure air circulation is smooth; Optional partition suction, super wind, strong suction;
Ø Dustproof and explosion-proof chassis circuit: safe production, no hidden dangers;
Optional strip system: to solve the problem that the machine is not allowed to cut the strip fabric.
Equipped with active round knife tool, single layer cutting fabric, imitation leather or other fabric material coating, can also be equipped with vibrating knife tool for multi-layer cutting

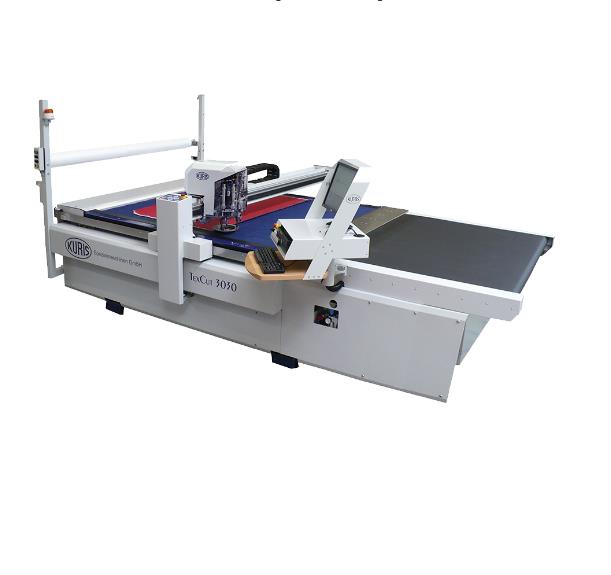

Boke Automatic Cutting Machine (KURIS)
Features:
High accuracy
Automatic knife sharpening device
Super cooling system
Uniform pressure
Ensure more than 20 years of service life
Easy maintenance and operation
Parameters:
Maximum cutting height: 80mm Maximum cutting speed: 60m/min
Maximum positioning speed: 80/min Working width: 1.70/2.23m
Table width (Y direction) : 1.90/2.43
Machine working length (X direction) : 1.70m
Total length of machine: 4.70m Voltage: 380V,50/60HZ
Power consumption of control machine: 6kw Power consumption of air pump: 15kw
Total power: 21kw Machine weight: 3000kg
Noise level: 59-78dB

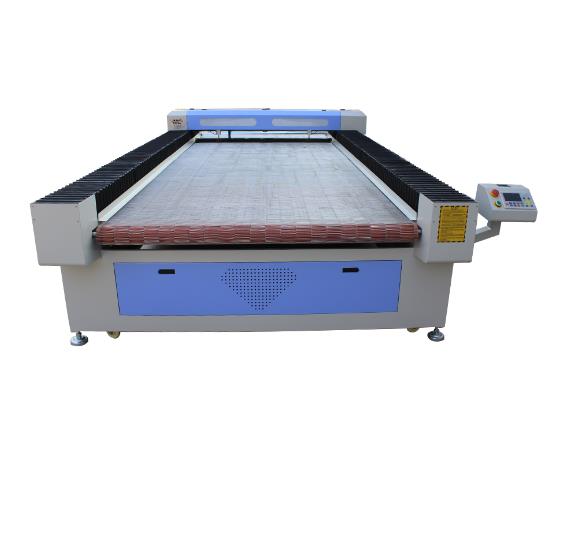

Boke single cutting machine
Ⅰ、machine characteristics
1、the use of crawler table with feeding system, can achieve automatic continuous processing.
2, CNC system automatically optimize the processing path, can be configured with intelligent typesetting software, save materials, reduce costs.
3, the configuration of high-speed inner slide rail, cutting speed, and automatic locking function is good, greatly improve the work efficiency.
4, with double-head intershift function, to achieve odd cutting, improve work efficiency.
5, automatic correction feeding system, to solve the long-term cutting fabric offset defects.
6, professional adsorption platform, can make the processing cloth smooth
7, install dust-proof device, guide rail good maintenance.
Ⅱ、Application Industry:
Clothing, sofa fabric, shoe making, plush toys, car seat cushion and other industries
Application materials: cloth, leather, textile, felt, sponge, composite materials, etc
Ⅲ、Machine parameters:
Product model :BOK-1630/1830
Cutting area :160300CM/180300CM
Laser power :130/150w
Laser type :CO2 sealed glass tube laser, water cooled, 10.6um
Cutting speed :0-60000mm/min
Cutting speed :0-36000mm/min
Positioning accuracy :≤±0.025mm
Voltage :220v/50Hz,
Minimum forming text: Man 22mm letters 1.01.0mm
control system :USB,control,system
Cooling method: water cooling
Support graphics :BMP, PLT, DXF, AI, DST
Iv. Machine Configuration:
Part name: Specification
Laser tube: 130W
Laser power supply: 130W
Lens set: (3 anti 1 poly)
Control system: color screen
Chiller: CW5200
Guide rail: high-speed inner slide rail
Exhaust fan: 550W(3 sets)
Platform: stainless steel track conveyor
Press system: cylinder automatic press
Correction system: automatic correction frame
Size of correction frame: 2.05×1.2×0.8M

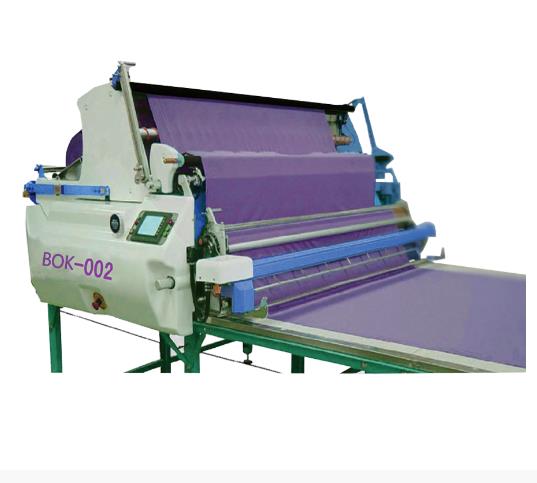

Boke automatic spreader
Features:
No tension spread, the effect is better;
Tool feed mechanism, spread cloth more evenly;
Automatic stop of the edge and the end of the cloth roll;
The program controls the length, the number of layers and the tightness of the fabric;
High spreading speed and high production efficiency.
Power supply :220V50HZ Power: 2kw
Roll weight: 100kg Roll diameter: 50cm
Width: 160/180/200/220/240
Net weight: 350kg
