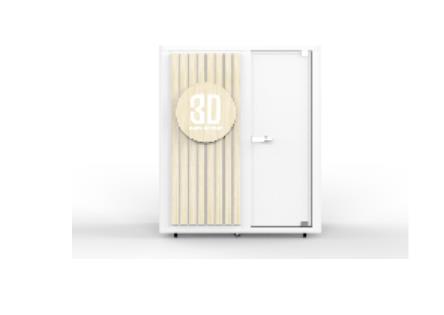

Boke 3D body scanner II
Realize 3D sensing, 3D human modeling, and figure extraction algorithm, and measure hundreds of body data within 2 seconds, with an error of less than 1cm.Through deep scanning technology, body data extraction algorithm, rapid extraction and establishment of 3D models, human body model optimization, bone information extraction, free anthropometry services, and the establishment of human body data platform to quickly measure the body, low-cost access to large-scale body data.
Features and Advantages：
►Free measurement in the fitting room to attract users
►Offline users become online users
►Custom samples and display
►Shop at the IPAD online store
►Online payment, online purchase
►By quickly collecting human body model and body data, a human body data platform is built, and on this basis, services such as body shape report, clothing recommendation based on body data, and personalized clothing customization are derived
Algorithm specifications:
1、Body scan speed: 2seconds
2、Human model reconstruction time: 20 seconds
3、Model output format: obj file
4、Body data analysis and processing time: 2 minutes
5、Body data measurement parts: 26 body data (new measurement parts can be added at will)
6、Measurement accuracy of body data: ±2CM
Product parameters:
1、Product name ： Boke 3D body scanner II
2、Input voltage/current: AC220V/10A three-hole plug (grounded)
3、Rated power: 800W
4、Installation site area: 2m(length) *1.9m (width) *2.5m (height) covers an area of about 3.82 ㎡
5、Number of columns： 4
6、Sensor: Depth camera*16
7、Sensor resolution：640*480/30FPS
8、Measuring range：φ1.0m*1.9m
9、Measuring depth：0.4m to 1.4m
10、Accuracy： @1m:1to 3mm
@2m:±12.7mm
11、Depth of field：1.0m
12、Noise level ：<50dB
13、Operating temperature ： -10℃ to 50℃
14、Working humidity: <80%
15、Operating system: Windows 10 64bit

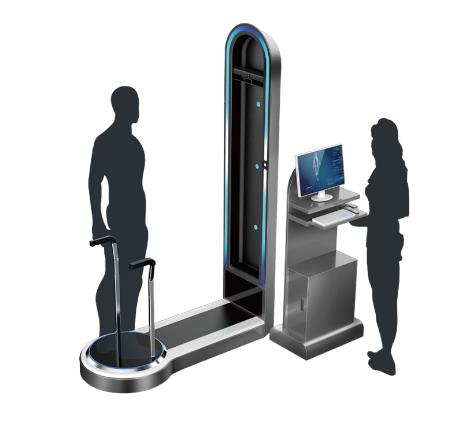

Boke 3D body scanner I
It consists of two parts: scanning equipment and scanning software. Through the software operation of the up and down movement of scanning equipment and the 360 degree rotation of the turntable, the human body is scanned in an all-round way, and the three-dimensional model of the human body of equal proportions in color is generated. The sensor composed of advanced infrared camera and RGB camera, which is safe and harmless to human body, is used as a scanning component to carry out non-contact scanning measurement of human body.
Functional features:
1. Full color and full size: full color 3D scanning mode, human equal proportion, can achieve online multi-end display, fitting, etc.
2. Intelligent automation: no manual assistance and repair, to achieve fast, indirect fool operation.
3. Fast automatic acquisition of human data: scanning time < 90 seconds, processing time ≤120 seconds.
4. The local data of the human body can be customized edited, and the name of the human body part can be customized edited.
5. Network publishing: Upload to the network server synchronously to achieve multi-end sharing and publishing.
6. Personalized measurement: online measurement and design, to achieve a comprehensive evaluation of designers.
7. Unique logic engine (body type, body composition, size selection…) .
8. Using the latest WebGL rendering technology, mobile APP and PC side display and online measurement technology.
9. From the original scanning data, the automatic generation of portraits and human models seamlessly interconnect with the 3D virtual fitting system
Product parameters:
1. Meet the requirements of IS0 20685:2005 “3D Scanning Methods for Internationally compatible anthropometric databases”.
2. Scanning duration < 90 seconds, processing duration ≤120 seconds, rated voltage 220V, rated power 250W.
3.Scanning accuracy ≤0.15mm; Similarity ≥95%; Measurement error ≤2%.
4. Using the world’s most advanced infrared camera and RGB camera sensor as a scanning component, output 720P high-definition video stream, export OBJ data file.
5. Up to 5 sample patterns (take 5 scans in one pass).
6. Automatic calibration system (target object required)。
7. Remote operation option via Android or IOS phone/tablet (phones and tablets not available).
8. Size Stream Studio Supplementary desktop license for remote operation of software.
9. Equipment size: 1500×600×2200mm³, covers an area of less than 1㎡.
10. Two variable height stability handrails are installed on both sides of the turntable, and the height of the handrails can be adjusted according to the height of the tester.
Application industry:
This device is a high quality and low cost body scanner with automatic measurement of human dimensions, which can meet the needs of three-dimensional body scanning and sizing from research to retail.
•Custom clothing • Size estimation • 3D printing • Size tracking
• Size survey •For the fitness industry • Medical aspect

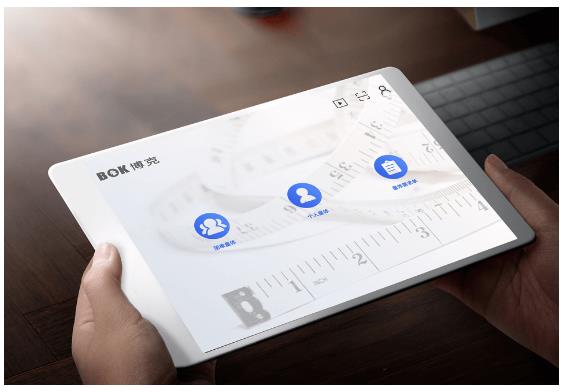

Through the combination of IPAD operating terminal and background management, the collection, statistics and management of human body data are realized. Through the automatic input of voice recognition, the system automatically returns to the code, and the background data can be exported to the table or integrated with the BOCK group order system, helping enterprises to measure size efficiently and produce efficiently
1、Convenient operation, voice broadcast, no manual recording, higher efficiency;
2、According to the data of the measured part, the size of the selected category is recommended in real time. The more complete the data, the more accurate the size is recommended
3、Can recommend a variety of size, such as suits, clips, shirts, etc
4、The measurement data is seamlessly connected to the boke group custom clothing CAD system
5、The customer list can be imported in bulk, and then queried and assigned to the designated surveyor, the operation is more efficient
6、Data error warning function to reduce human error
